Guide

There are basically 2 main components in Dagster:

• Asset, which represents something just like a DB table
• Job, which is a collection of assets

You might see the term Op and Graph in documentations or tutorials, they're outdated.

Materialize basically means execute/run.

Creating a Workspace

• The way our project structure works, one workspace represents one workflow/pipeline.

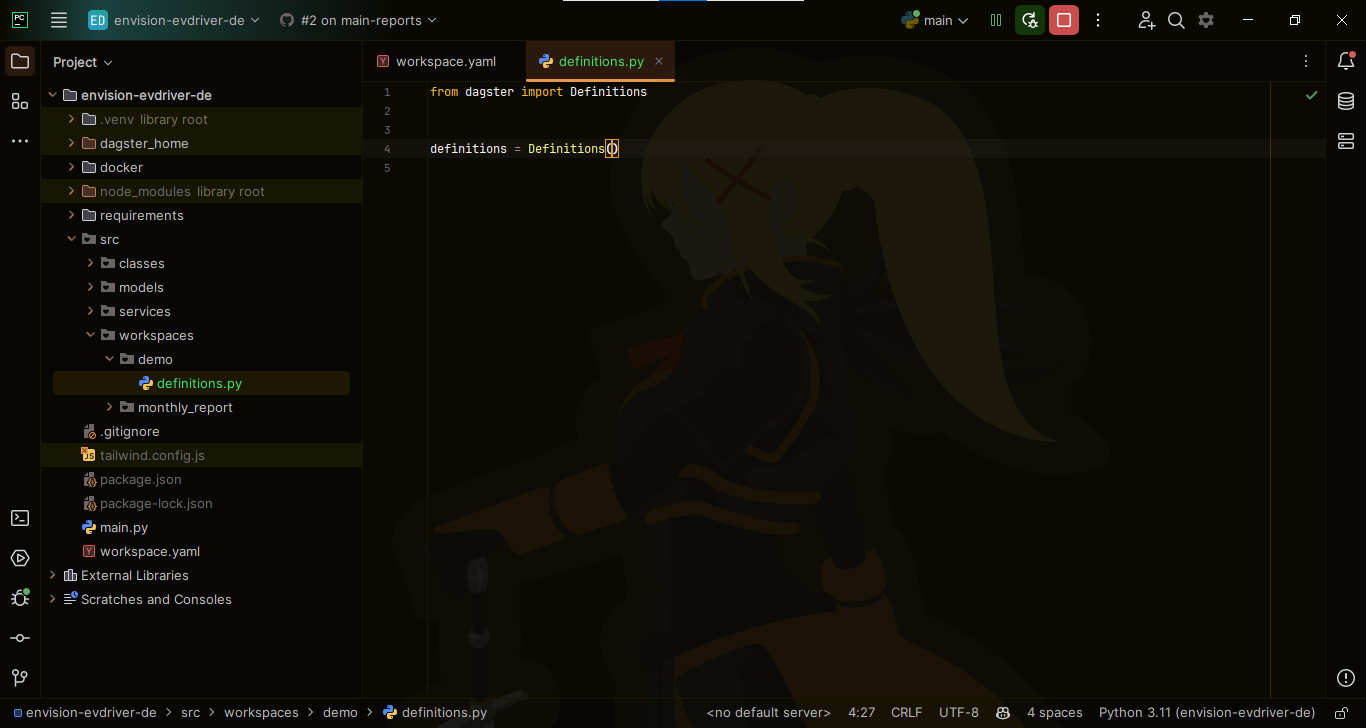

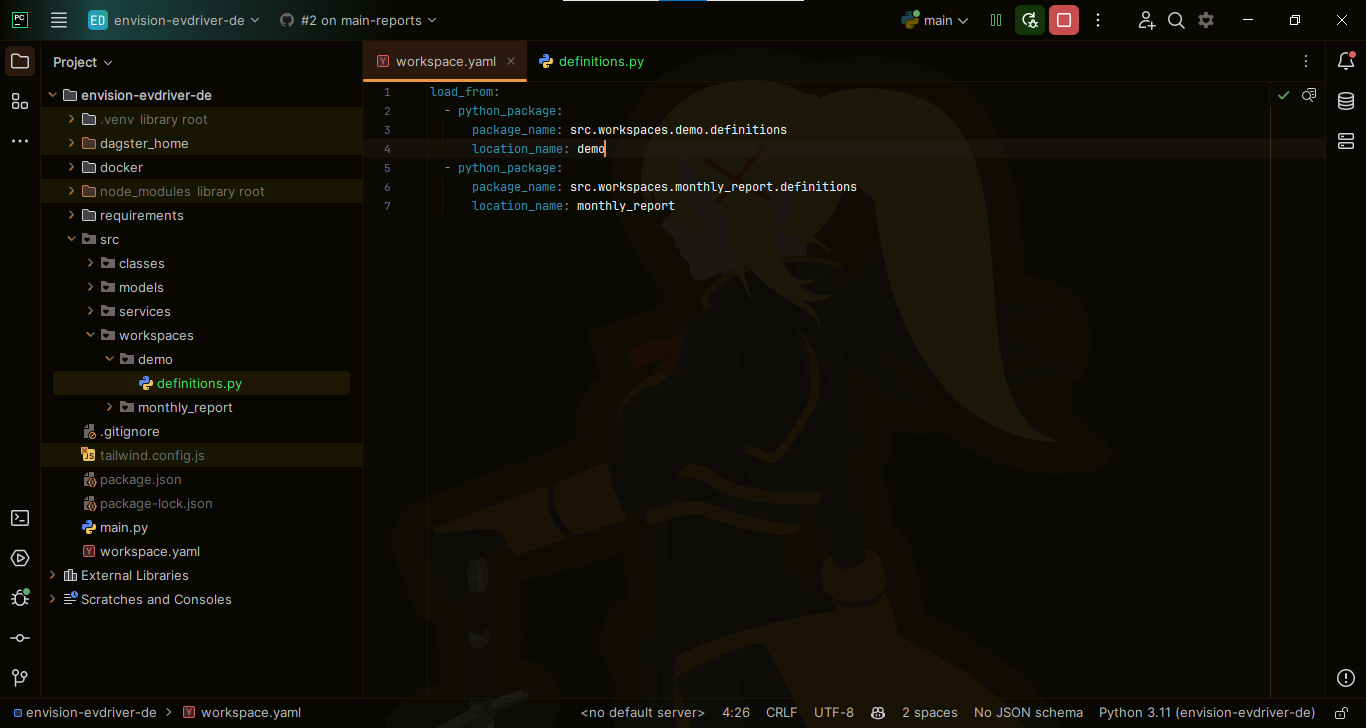

• To create a workspace, create a definitions.py, then add it to workspace.yaml.

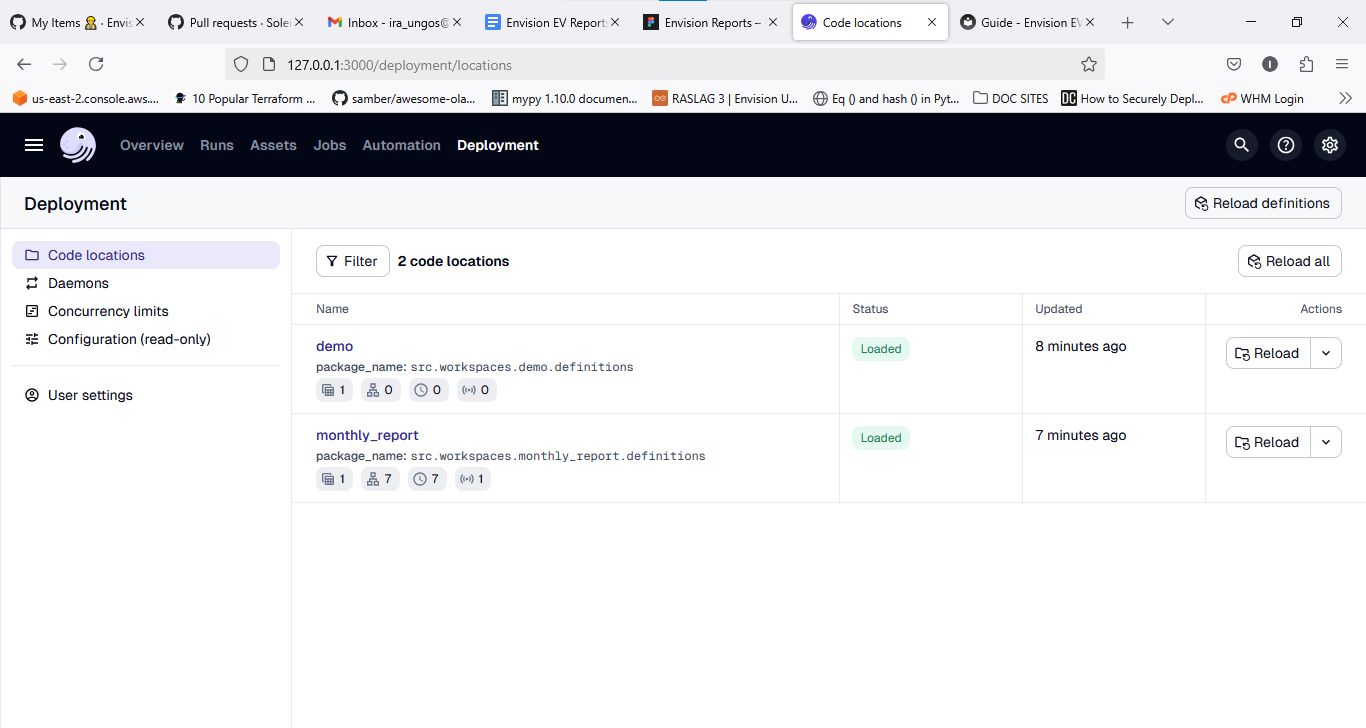

• Run main.py, then go the Deployment tab. You'll see the demo workspace.

Asset

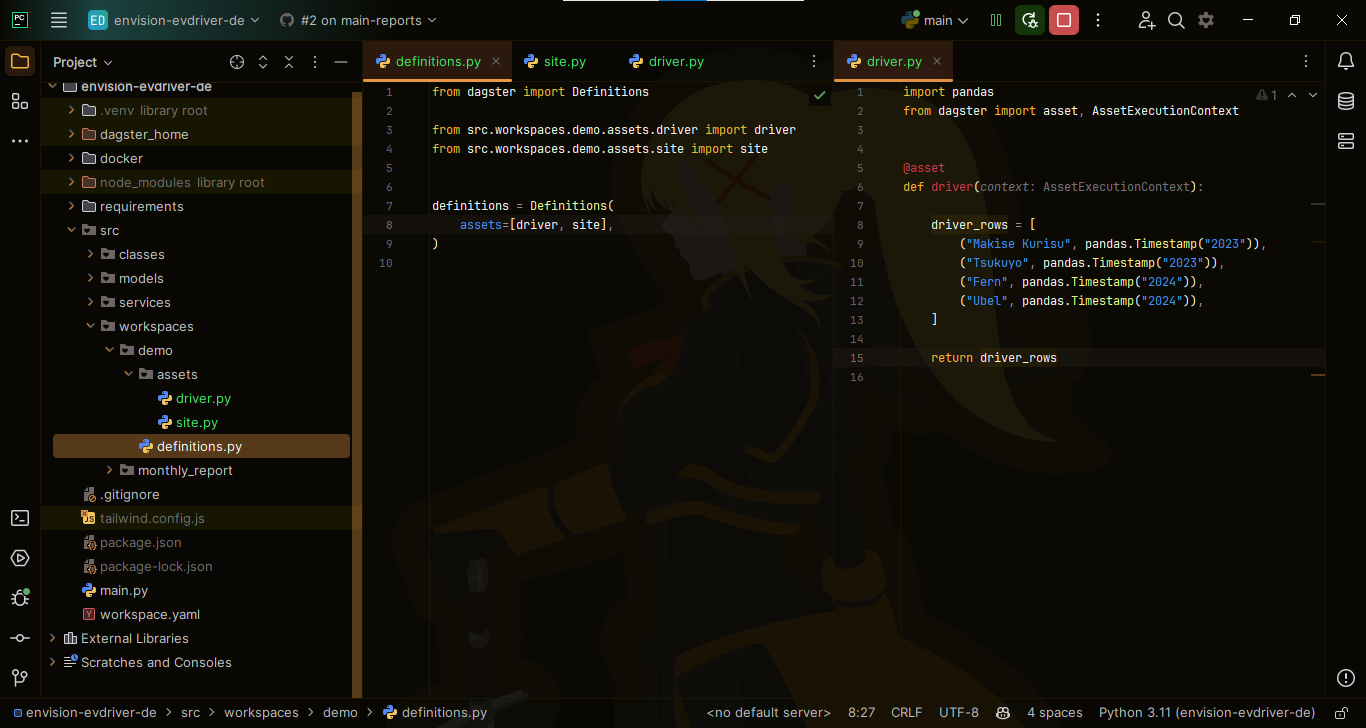

• You can create an asset by defining a function decorated by @asset, then passing it to Definitions().

• Press reload to update Dagster.

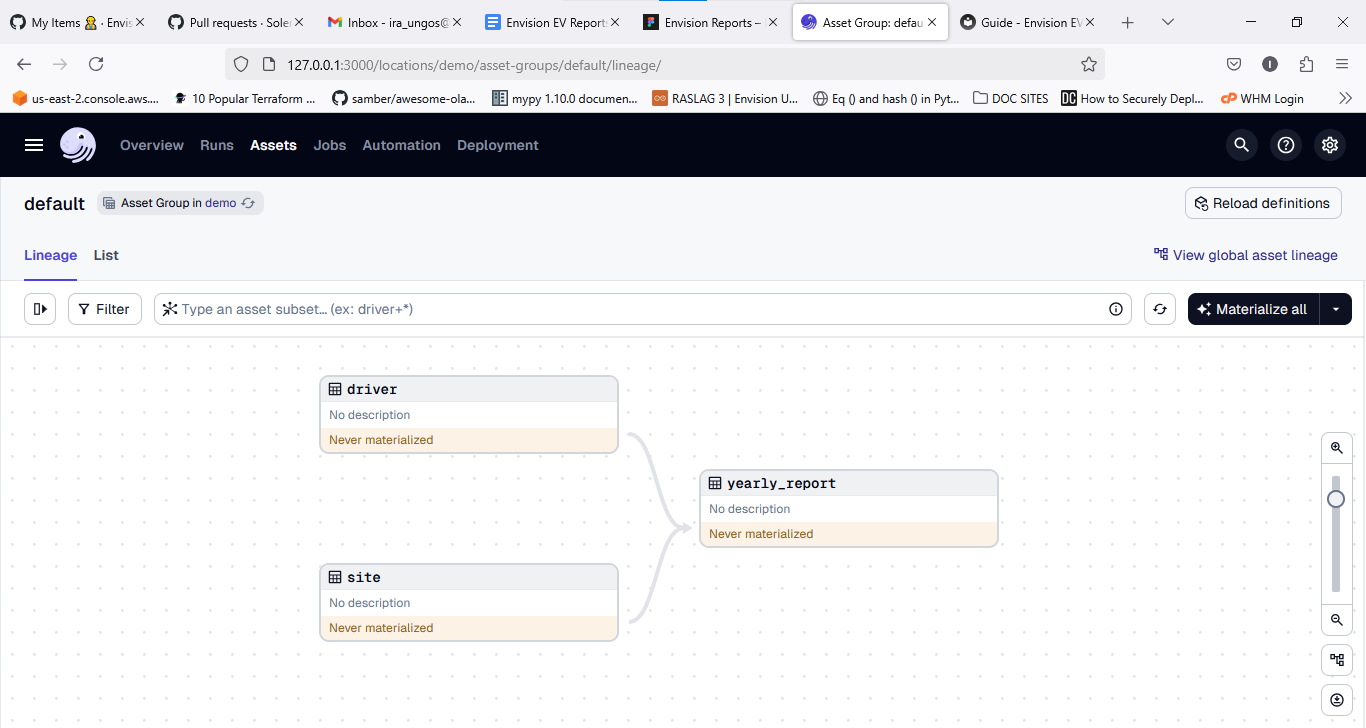

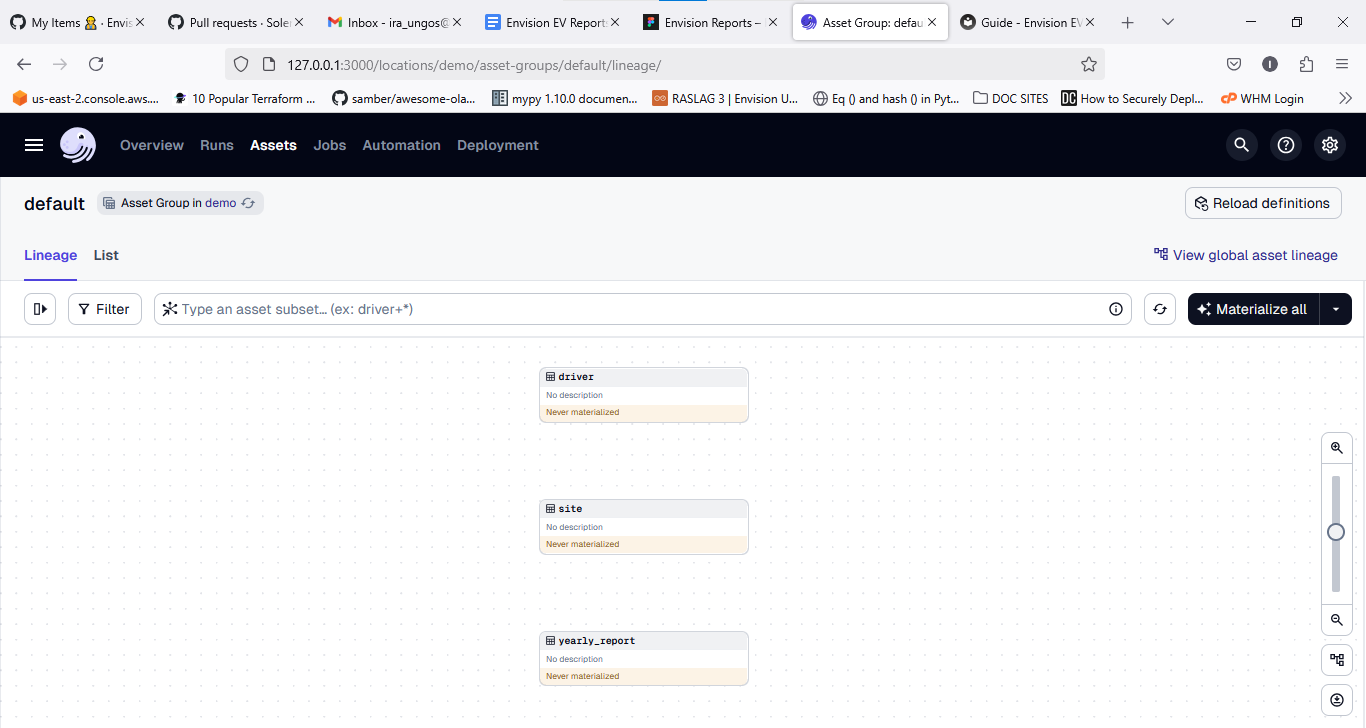

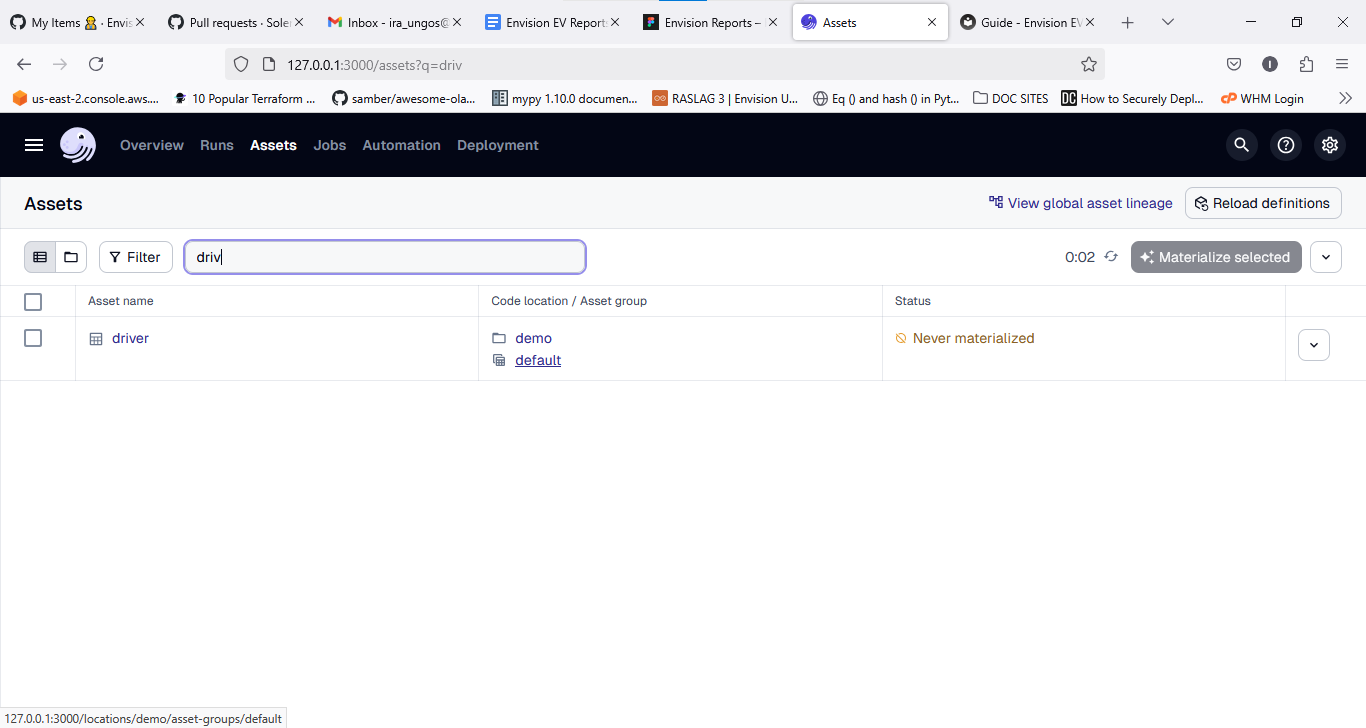

• Go to Assets tab, then click default. You'll see the assets available in the workspace.

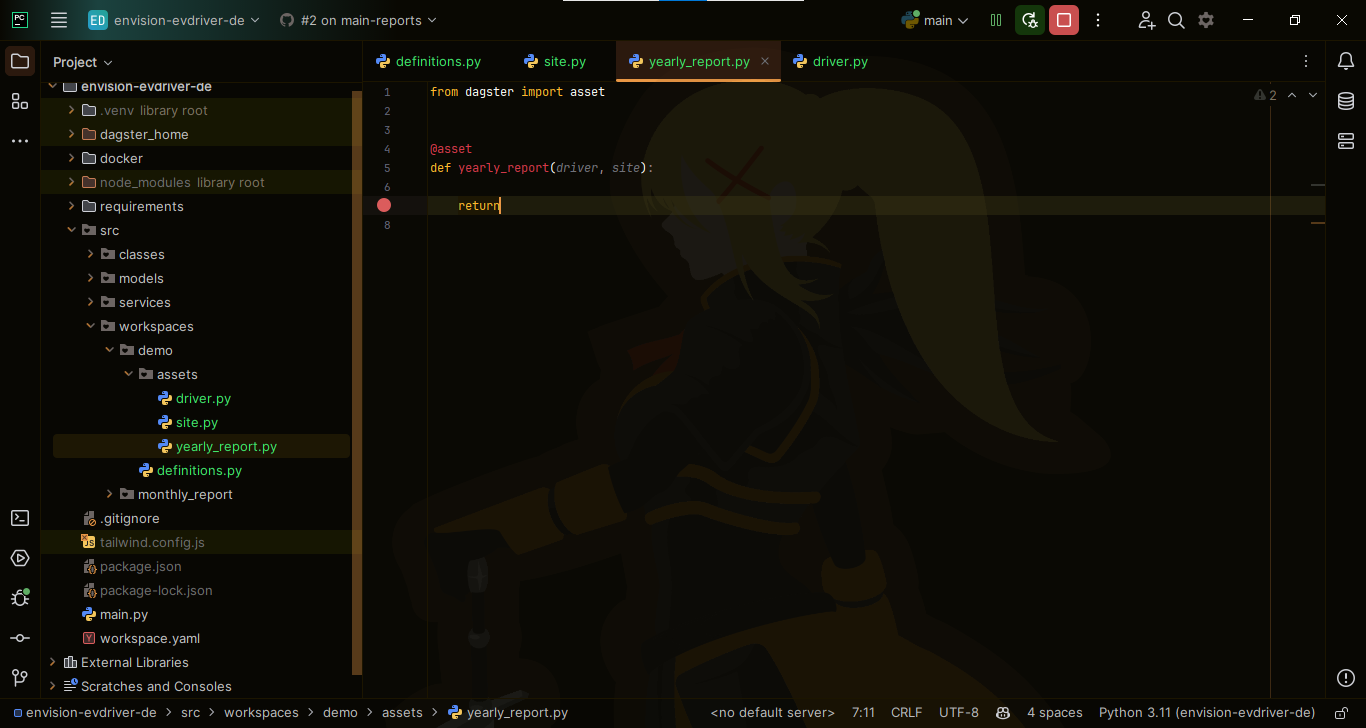

• To connect an asset, simply add the asset's name to the function's parameters.

• Clicking Materialize all would result in the execution of all assets. The execution order would be based on the DAG.

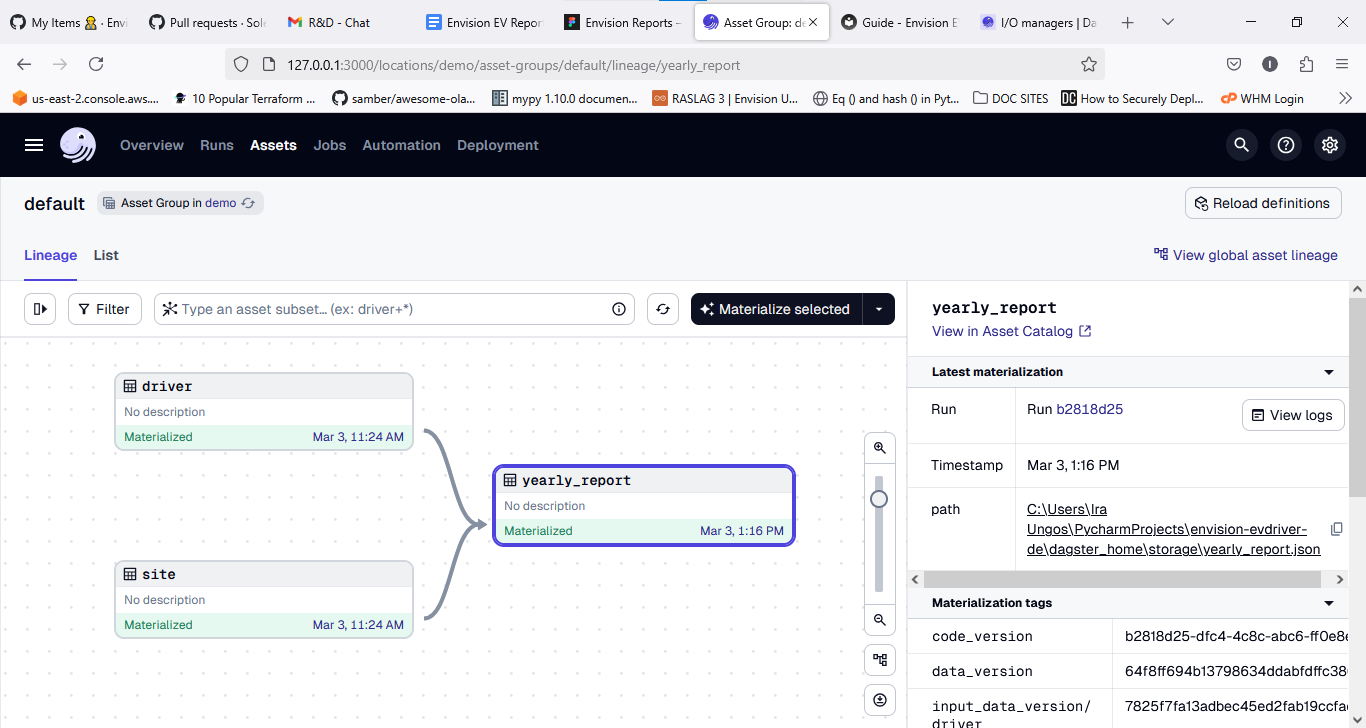

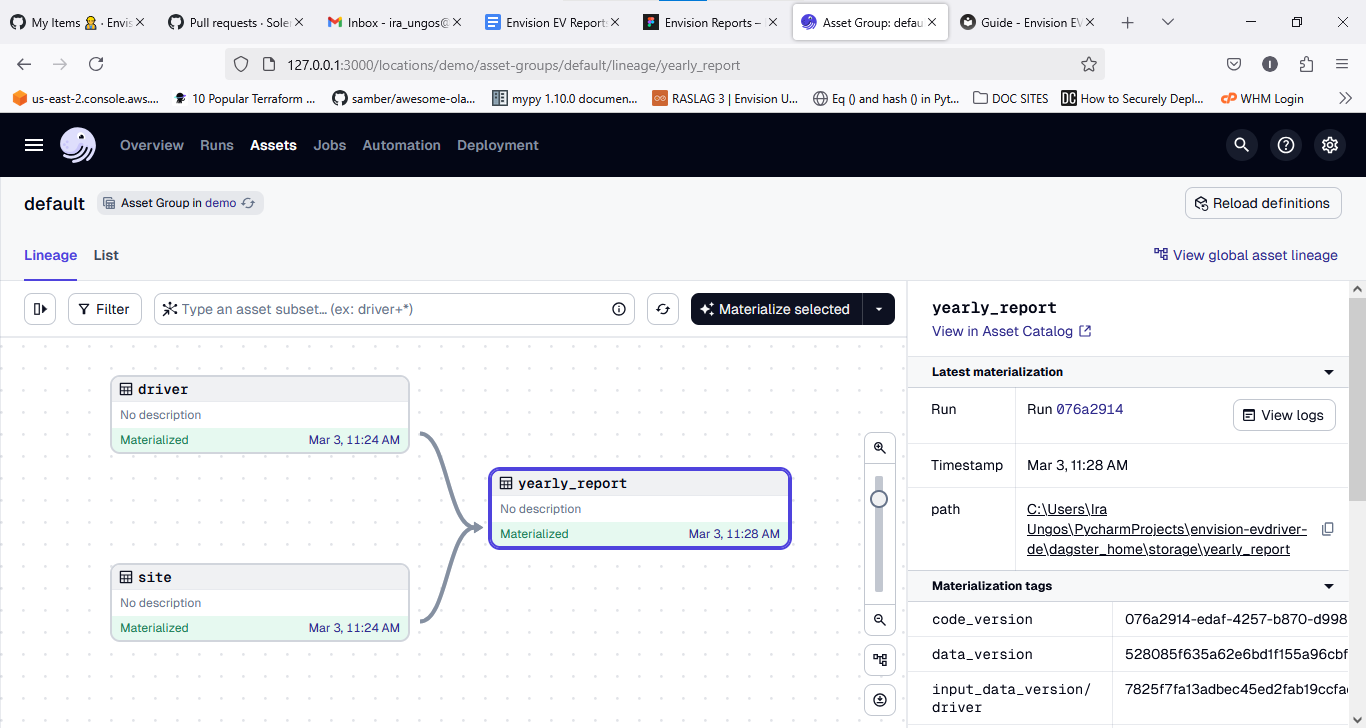

• Clicking on yearly_report, you'll be able to see on the right the output path. By default, it gets pickled.

IO Manager

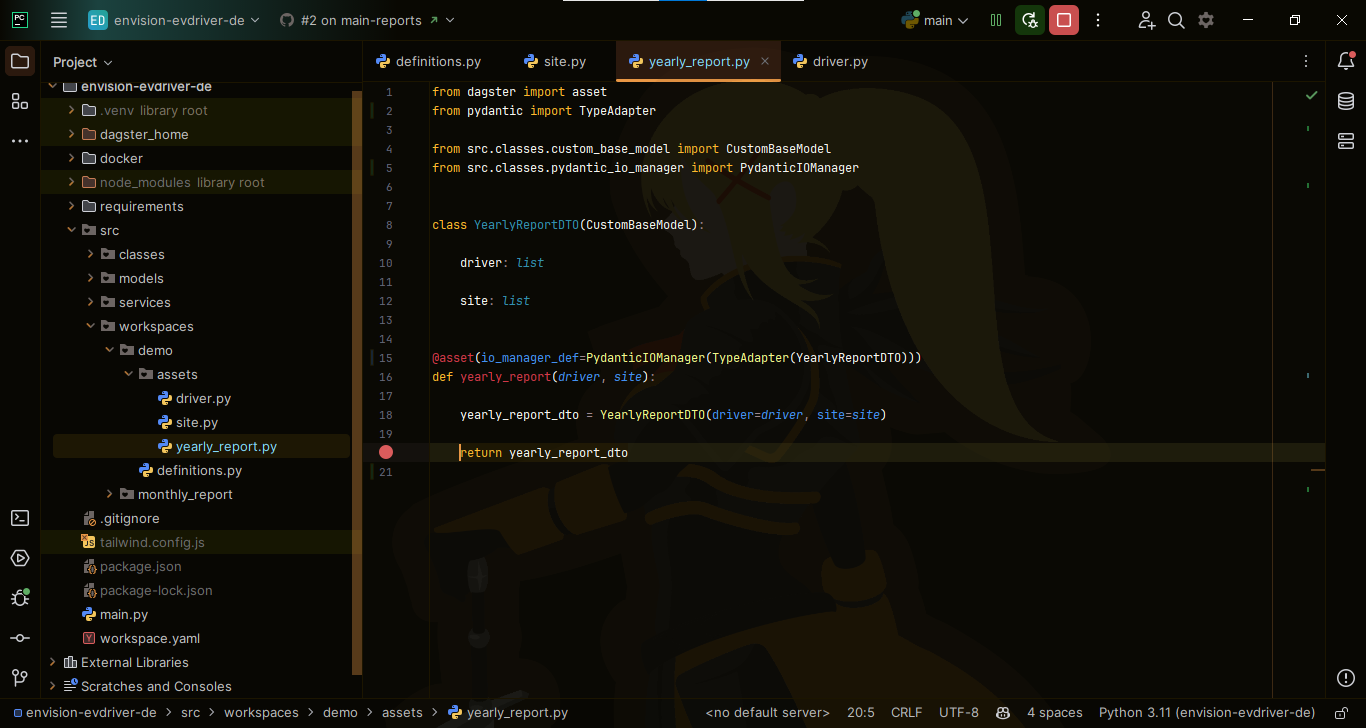

• Instead of pickle files, you can change how an assets is saved by setting io_manager_def.
• PydanticIOManager is not a built-in Dagster feature.

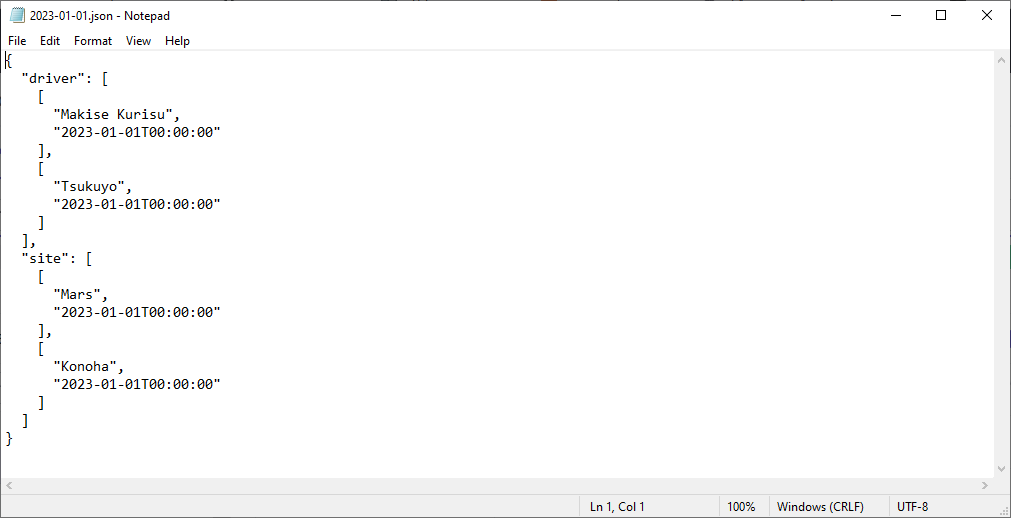

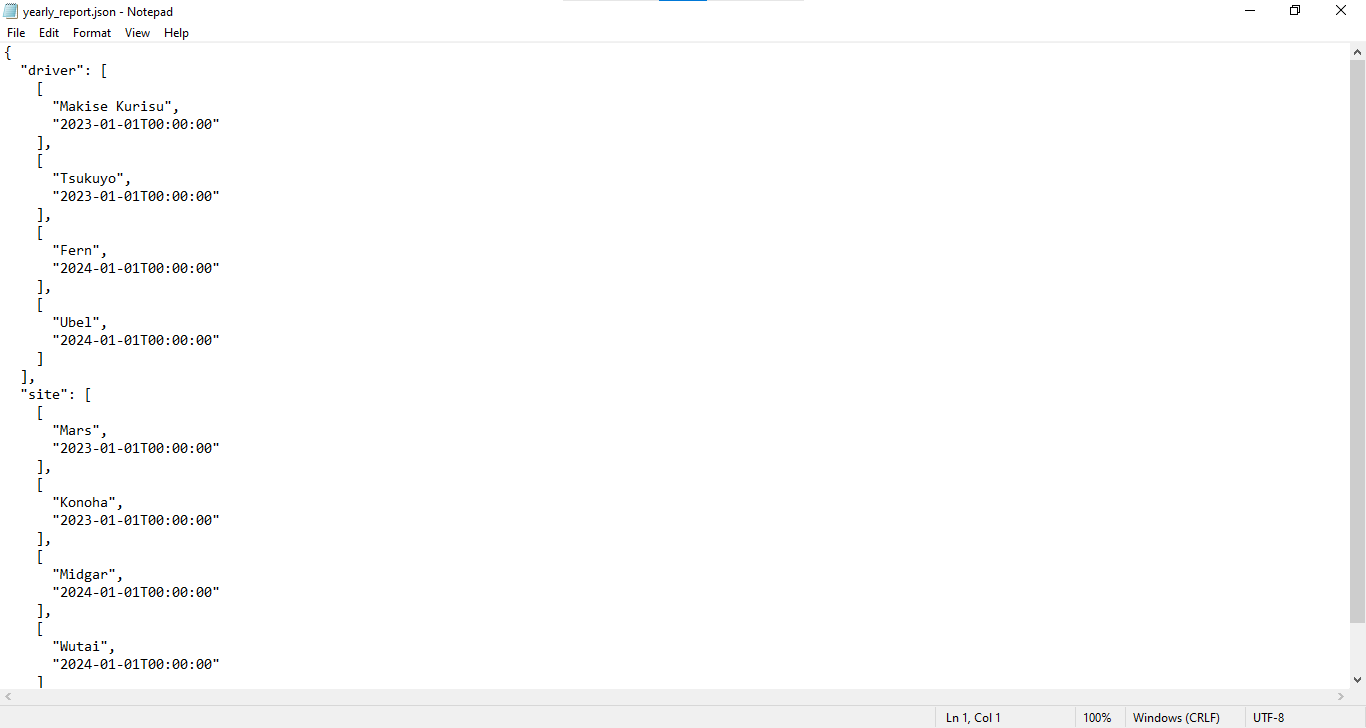

• Materialize yearly_report. You'll notice that the path now points to a JSON file.

Partition

• A partition represent a sub-set of an asset.
• Dagster has some built-ins such as MonthlyPartitionsDefinition, WeeklyPartitionsDefinition, etc.

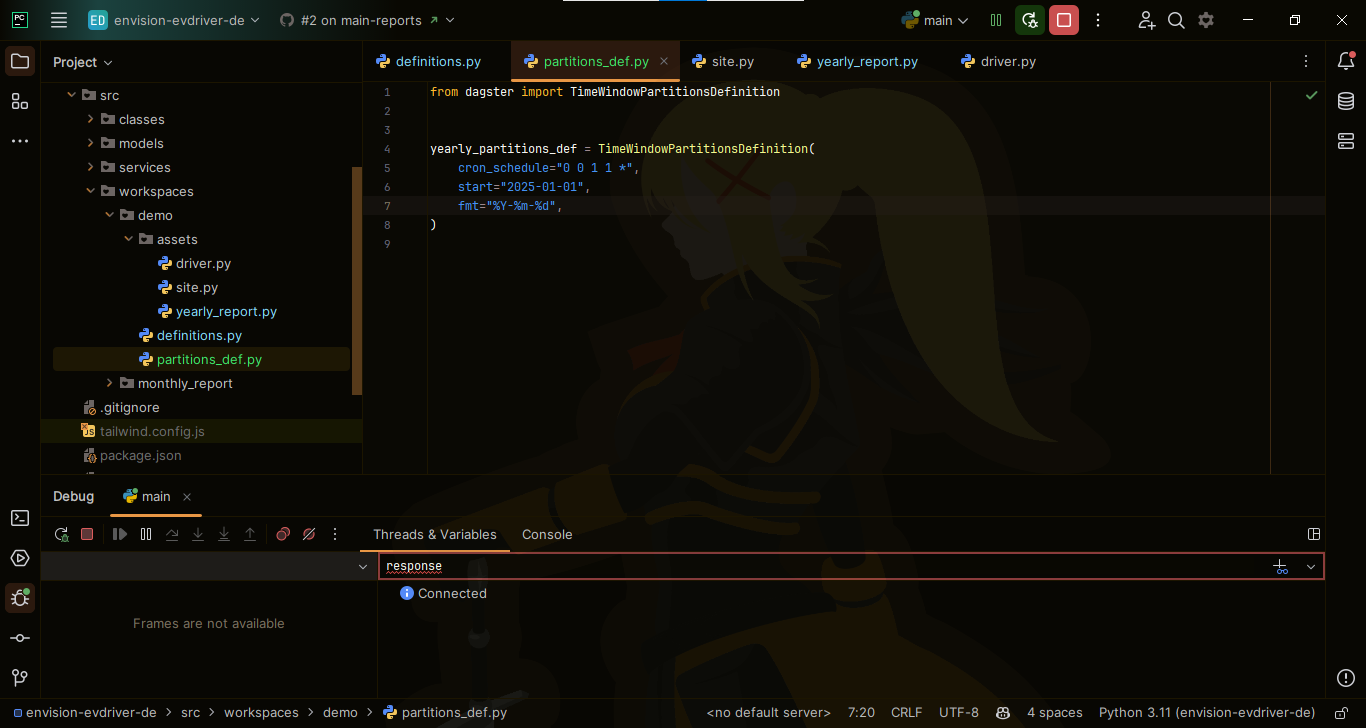

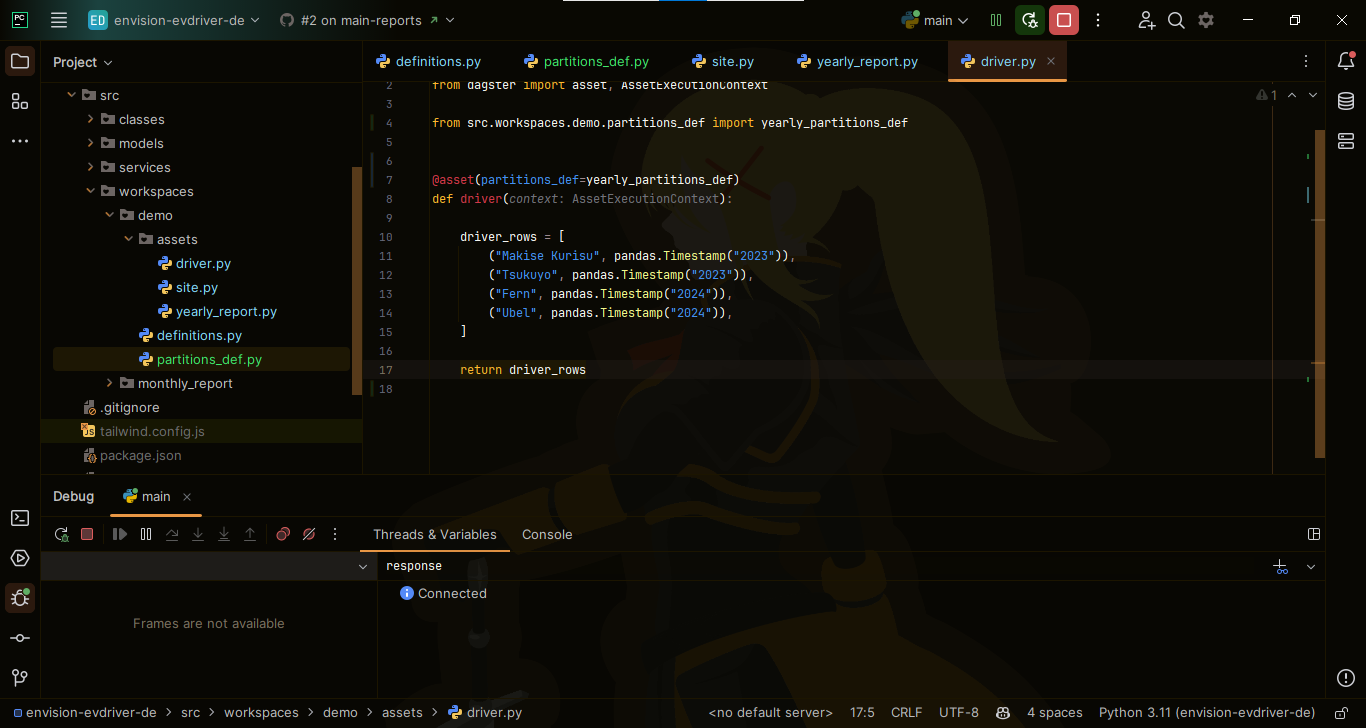

• You can partition an asset by assigning a value to partitions_def.

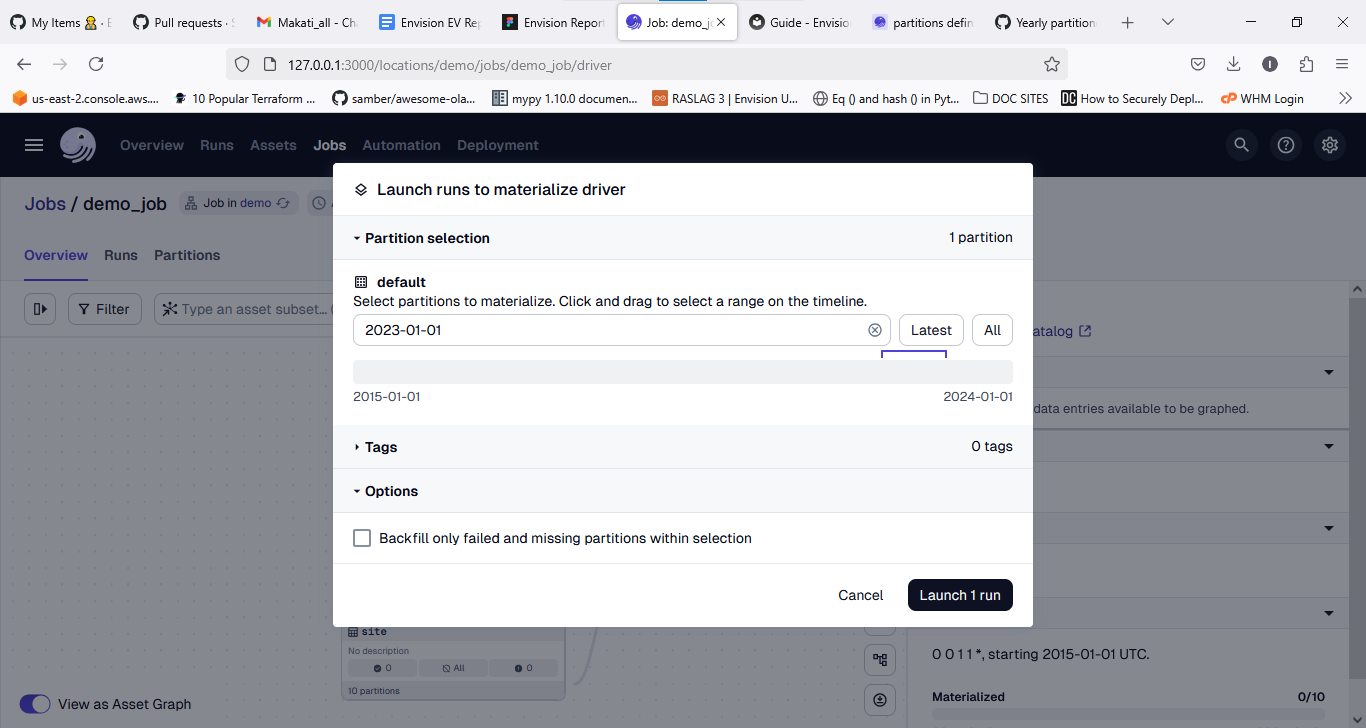

• If you try to materialize the asset, you will encounter an additional screen asking which partition to materialize.

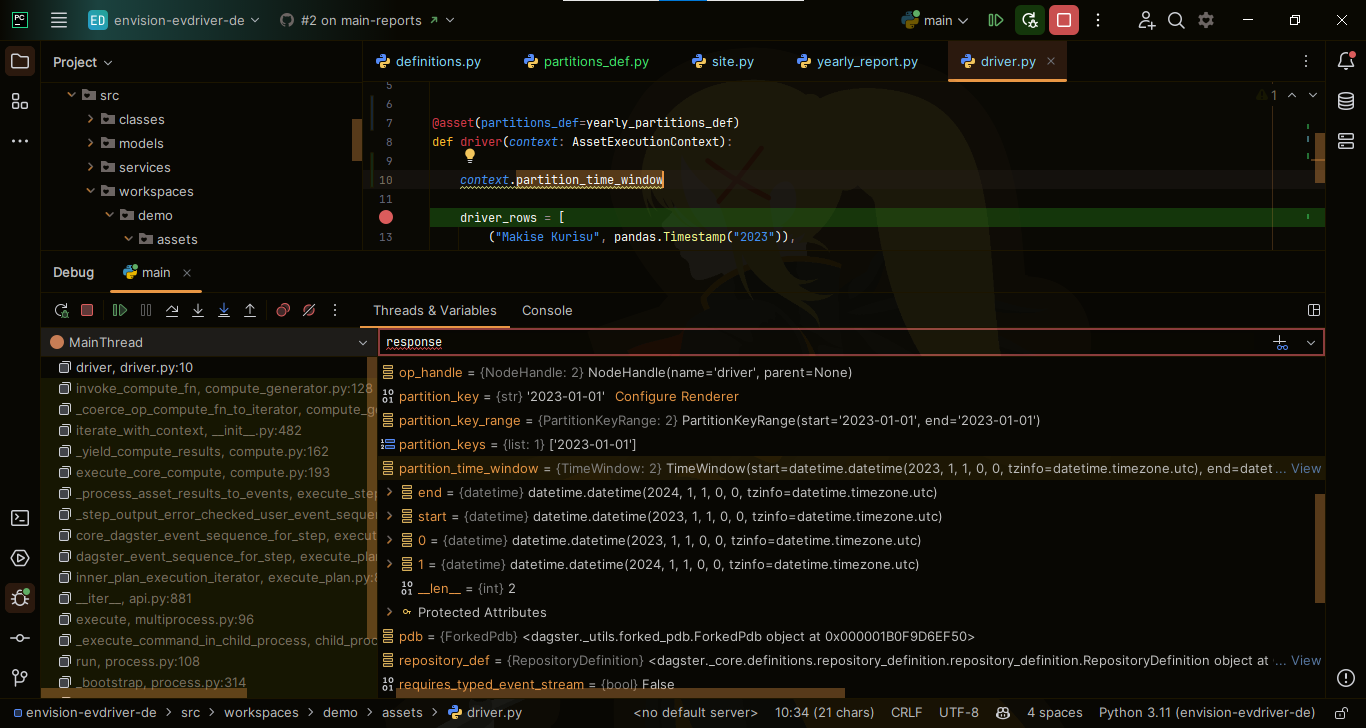

• You can access the partition info via context.partition_time_window. Since we materialized 2023, you'll see that the start is 2023. Adjust the code accordingly to filter out data.

Job

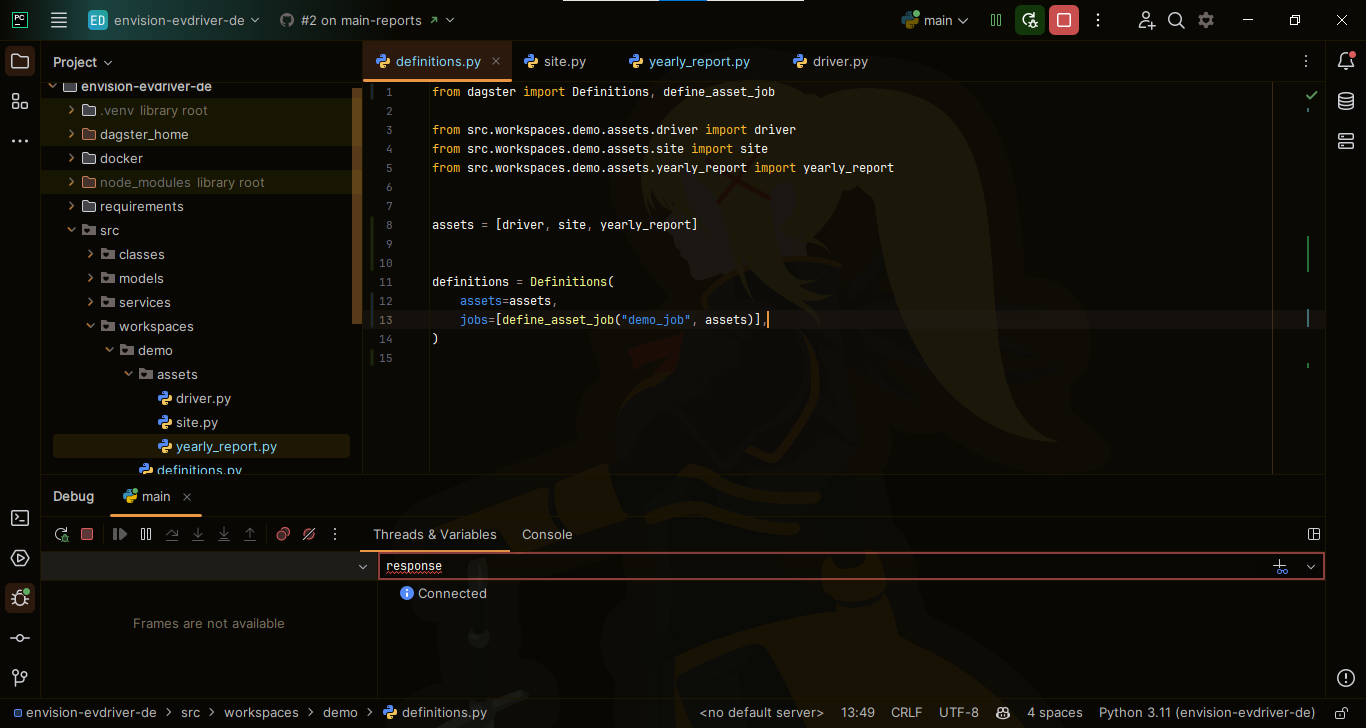

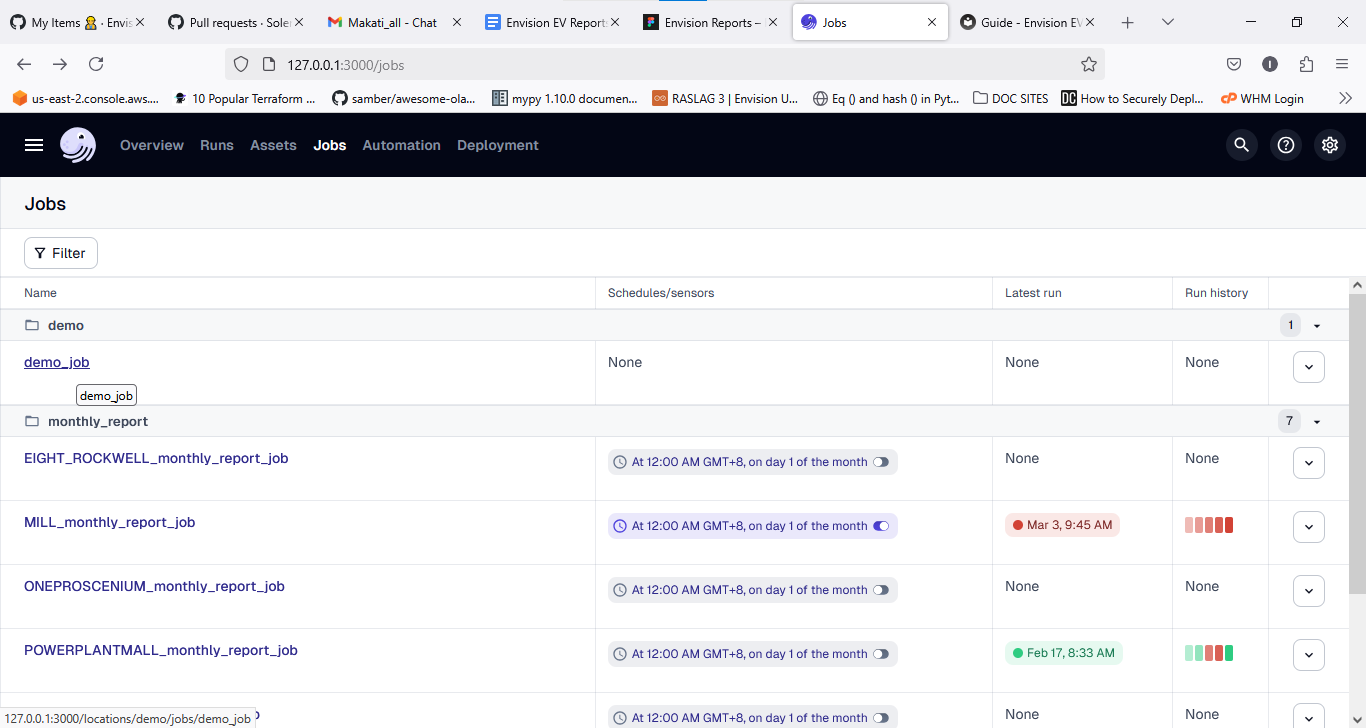

• You can create a job by using define_asset_job, then adding it to definitions.py.

• A job is basically a collection of assets. Running a job would materialize all assets associated to it.

Scheduled Job

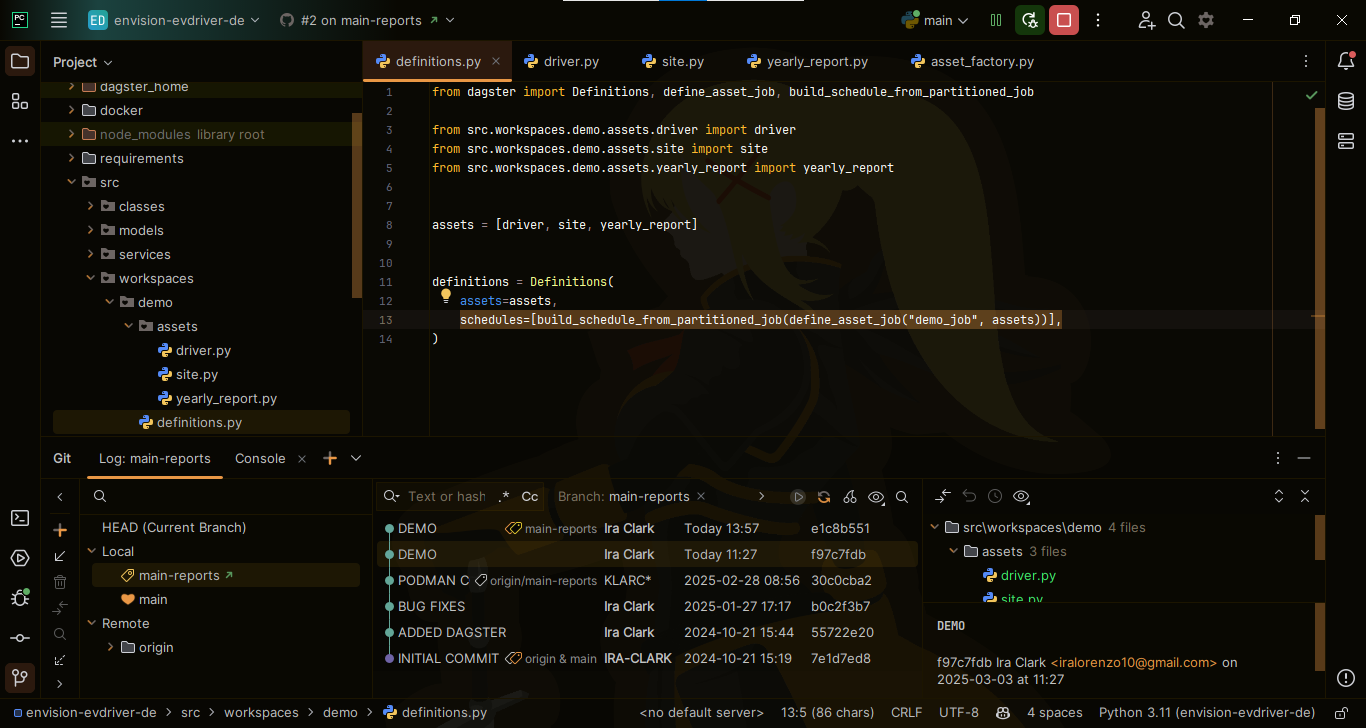

• If you want to run a scheduled job instead, use build_schedule_from_partitioned_job.
